ROLLING MILL REVAMPING

"파텍은 기존 압연기를 고객이 원하는 압연기로 개조하여 납품해 드립니다."



지난 20여년간 수십 기의 압연기를 개조한 경험을 바탕으로 고객이 원하는 사양의 압연기로 revamping 해드립니다.




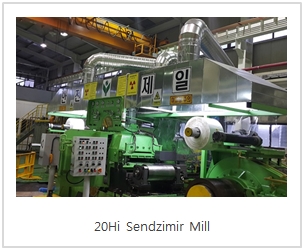

   1. Material : High carbon steel (SK5/Bartex)

   2. Strip width : 470 mmW

   3. Thickness : up to 0.1 mmT (within 0.5% deviation)

   4. Deviation : within 0.5% of final thickness

   5. Rolling speed : 350 mpm



   [Revamping Range]

   1. Civil foundation and new DC motors

   2. New AGC, Isotope gauge and hydraulic system

   3. New hoffman type filtration

   4. New Melsec PLC, ABB DC Drive








   1. Material : High carbon steel (1.2GP)

   2. Strip width : 200 mmW

   3. Thickness : up to 0.1 mmT (within 0.5% deviation)

   4. Deviation : within 1.5% of final thickness without AGC

   5. Rolling speed : 100 mpm



   [Revamping Range]

   1. Civil foundation and new DC motors

   2. New AGC and hydraulic system

   3. New special designed housing and chock and rolls.

   4. New S7-300 PLC, ABB DC & AC vector Drive




   [Revamping Range]

   1. Material : Various cooper alloy

   2. Housing levelling and new hot coiler unit

   3. Main drvie gear reducer revamping

   4. Hyd' power package and manifold block revamping

   5. New Melsec PLC and interface with existed PLC system

   6. Parker DC drive revamping

   7. Operation panel upgrade

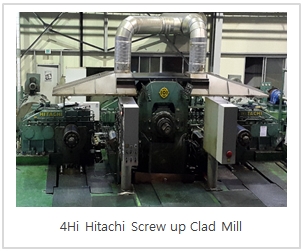

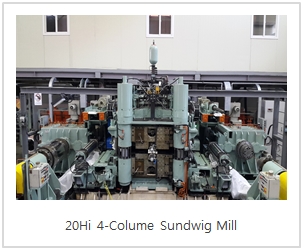

  revamping_04.jpg 1. Material : 3 & 5 fold clad with Cu, Al, Steel, Stainless steel alloys

   2. Strip width : 600 mmW

   3. Thickness : 3.5 ~ 0.2 mmT (within 0.5% deviation)

   4. Deviation : within 0.5% of final thickness

   5. Rolling speed : 150 mpm



   [Revamping Range]

   1. New AGC and hydraulic system

   2. Exchanged mechenical push-up type to hydraulic

   3. Modify existed motor drive and vollmer gage system

   4. Re-programmed existed main Master-k PLC, Vollmer S7-300 PLC






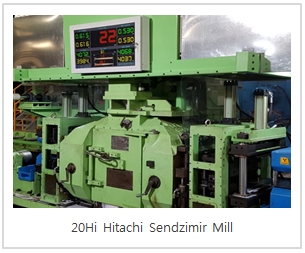

   1. Material : Cooper-Nickel

   2. Strip width : 600 mmW

   3. Thickness : up to 0.05 mmT (within 0.5% deviation)

   4. Deviation : within 0.5% of final thickness

   5. Rolling speed : 300 mpm



   [Revamping Range]

   1. New AGC, hydraulic system  and Isotope gage system

   2. Exchanged mechenical push-down type to hydraulic

   3. Modify existed Parker motor drive interface

   4. Re-programmed existed main S7-300 PLC





revamping_06.jpg   1. Material : Cooper alloys

   2. Strip width : 300 mmW

   3. Thickness : up to 0.1 mmT (within 0.5% deviation)

   4. Deviation : within 0.5% of final thickness

   5. Rolling speed : 300 mpm



   [Revamping Range]

   1. New AGC, hydraulic system and Isotope gage system

   2. Exchanged mechenical push-up type to hydraulic

   3. Modify existed Parker motor drive interface

   4. Re-programmed existed main XGT PLC and New HMI system






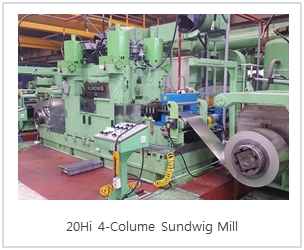

   1. Material : Cooper alloys

   2. Strip width : 670 mmW

   3. Thickness : up to 0.01 mmT

   4. Deviation : ±1.5μ under thickness 0.1mm, ±0.5μ under thickness 0.03mm

                    with 2 sigma range

   5. Rolling speed : 600 mpm



   [Revamping Range]

   1. Civil foundation and new DC motors

   2. New AGC, X-ray gage and hydraulic system

   3. Revamped special designed 4-colume cylinder including servo hydraulic control

   4. New Melsec PLC, ABB DC Drive

   5. 1st taper roll, profile crwon adjustment, tilting control for AFC function




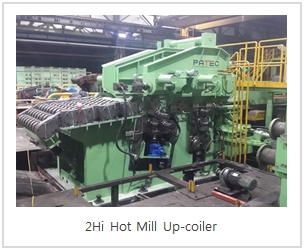

   [Revamping Range]

   1. Material : various steel plate

   1. Exchanged mechenical push-up type to hydraulic

   2. Extend roll force up to 300 ton (max. 150 ton / chock)

   3. New HPC (Hydro-position control), Gage meter (BISRA AGC) control

   4. New main gear box and Left/Right run table upgrade

   5. New Melsec PLC with 2 HMI system

   6. Modify interface existed Parker drive














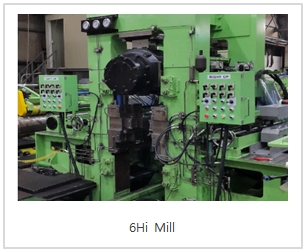

   1. Material : High carbon steel (Bartex, SK5)

   2. Strip width : 450 mmW

   3. Thickness : up to 0.1 mmT (within 0.5% deviation)

   4. Deviation : within 0.5% of final thickness

   5. Rolling speed : 120 ~ 300 mpm



   [Revamping Range]

   1. Civil foundation and new DC motors

   2. New AGC, Isotope gauge and hydraulic system

   3. New SMC filtration system

   4. New Melsec PLC, ABB DC Drive








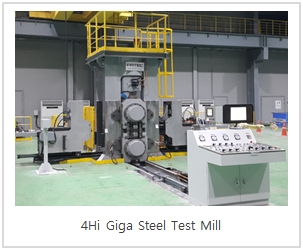

   [Revamping Range]

   1. Material : Various cooper alloy

   2. Engineering and modification fo civil foundation

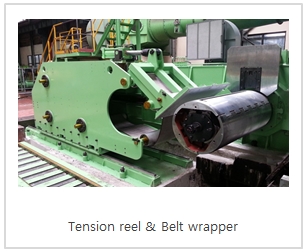

   3. New tension reel with horizontal belt wrapper

   4. Coil transfer handling system

   5. New payoff reel

   6. New hydraulic system in sequence

   7. Interface with AFC























[중고 설비 구매 시 주의점]

때로는 고객이 중고 설비를 구매하고 당사에 이에 대한 Revamping을 요청하실 때가 있습니다. 고객 분들은 반드시 중고 설비의 구매 시

모든 부품을 신중하게 검사하여 사용 가능한 상태에 있는지, 허용 오차 범위 내에 있는지 확인하셔야 합니다. 특정 부품의 상태가 좋지

않은 경우 최종 성능 시험 시 반드시 문제가 발생할 소지가 매우 많기 때문입니다.

일부 압연 설비를 판매 및 Revamping하는 업체들 중 문제가 있는 설비를 저렴한 가격에 구매하여 고객을 속이고 판매하거나, 자체

엔지니어링 인력없이 외주 인력을 프로젝트 성으로 투입하여 설비가 완전하게 압연되는 시점까지 Supervising을 하지 않고 있습니다.

파텍은 다릅니다.

파텍은 압연설비 전문 업체로 성장하고 있습니다. 중고설비의 선정에서부터 설치, 시운전까지 일괄 엔지니어링을 제공해 드립니다.

파텍은 명예와 자존심을 걸고 모든 고객분들에게 최선을 다하고 있습니다. 부족한 점은 따갑게 질책하여 주시고, 더욱 발전시켜야 할

부분이 있다면 언제라도 조언해 주십시오. 개인의 발전이 곧 회사의 발전이고 회사의 발전이 곧 강한 경쟁력을 갖춘 대한민국의 미래라고

생각하고 있습니다.

언제라도 연락 주십시오! 기다리겠습니다.
